2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Cutting Material : Galvalume,Galvanized, PPGI, Aluminum

Product Name : Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler

Coil Weight : 5 tons / 7 tons / 10 tons (can be customized)

Cutting Width Precision : ± 0.01 - ± 0.05 mm

Machine Weight : 13000 KG

Slitting Pcs : 2 - 30 pcs

Material Thickness : 0.3 mm -3 mm

Working Speed : 8 m /min - 30 m/min (can be customized)

Brand Name : FAMOUSE

Model Number : Mini Automatic Slitting Line

Certification : ISO, CE

Place of Origin : CHINA MAINLAND

MOQ : 1 Set Production Line

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 Sets Per 60 Days

Delivery Time : 60 Working Days

Packaging Details : 2 Pcs 40' FLC

Contact Now

2025 High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
Product Specifications
Attribute Value
Product Name Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
Cutting Material Galvalume, Galvanized, PPGI, Aluminum
Material Thickness 0.3 mm - 3 mm
Working Speed 8 m/min - 30 m/min (can be customized)
Coil Weight 5 tons / 7 tons / 10 tons (can be customized)
Slitting Pcs 2 - 30 pcs
Machine Weight 13000 KG
Cutting Width Precision ± 0.01 - ± 0.05 mm
Product Description
The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.
Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.
Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.
Main Technical Specifications
No. Item Description
1 Main Specification
  • Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa
  • Raw Material Thickness: 0.3 mm - 3.0 mm
  • Raw Material Width: 600 mm - 1600 mm
  • Tape Inner Diameter: φ 480 mm - φ 530 mm
  • Tape Outer Diameter: φ 1600 mm
  • Coil Weight: 5 tons - 10 tons
  • Slitting No.: Max 30 pcs
  • The Highest Slitting Line Speed: 8 m/min - 30 m/min
  • Minimum Cutting Line Width: 35 mm
  • Cutting Width Precision: ± 0.01 - ± 0.05 mm
  • Rated Operational Voltage: 240 V, 3 Phase, 60 Hz
  • Total Weight: 13000 KG
  • Working Space (L*W): 20000 mm*6000 mm
2 Decoiler Machine Specification
  • Tape Outer Diameter: Max φ 1600 mm
  • Tape Width: 600 mm - 1600 mm
  • Tape Inner Diameter: φ 480 mm - φ 530 mm
  • Coil Weight: 5 tons - 10 tons
  • Max Working Speed: 8 m/min - 30 m/min
  • Tape Tight Range: φ 480 mm - φ 530 mm
  • Shaft Diameter: φ180 mm
  • Roller Effective Length: 1600 mm
  • Drive Motor Power: 5.5 KW
  • Loading Car Diameter: φ 700 mm - φ 1500 mm
  • Loading Car Weight: 5 tons - 10 tons
  • Car Speed: About 4 m/min
4 Slitting Machine Specification
  • Cutting Width: Max φ 1600 mm
  • Cutting Thickness: 0.3 mm - 2.0 mm
  • Cutter Shaft Diameter: φ180 mm
  • Cutter Shaft Material: Cr 40
  • Cutter Size: 200 mm*300 mm*15 mm
  • Cutter Material: Cr12MoV
  • Cutter Spacer Size: 180 mm*240 mm*15 mm
  • Drive Motor: 15 kw
  • Cutting No.: 2-30 pcs
  • Cutter No.: Max 32 pcs
7 Recoiler Specification
  • Tape Outer Diameter: Max φ 1600 mm
  • Tape Width: 600 mm - 1600 mm
  • Tape Inner Diameter: φ 480 mm - φ 530 mm
  • Coil Weight: 5 - 10 tons
  • Max Working Speed: 8 m/min - 30 m/min
  • Tape Tight Range: φ 485 mm - φ 530 mm
  • Shaft Diameter: φ 180 mm
  • Roller Effective Length: 1750 mm
  • Drive Motor Power: 30 kw
  • Loading Car Diameter: φ 1000 mm - φ 1750 mm
  • Loading Car Weight: Max 10 tons
  • Car Speed: About 4 m/min
9 Electrical Control System 2 sets. Computer Control System is PLC.
10 Edge Collecting Machine
  • Drive Motor: 3 kw
  • Collecting Material Width: Max 20 mm
  • Double Edge Width: 400 mm
Guarantee
  • Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
  • Repairs will not be performed even during the guarantee period in the follow circumstances:
    • Damage occurs due to a natural disaster
    • Malfunction occurs due to user error
    • Malfunction occurs due to modifications
    • Malfunction occurs due to further movement or shipment after installation
Payment Terms
  • 40% in advance as down payment
  • 60% is paid before the shipment is processed
Delivery
  • FOB: Tianjin Xingang Port
  • The Delivery Time: 60 working days after the down payment is received.
Product Images

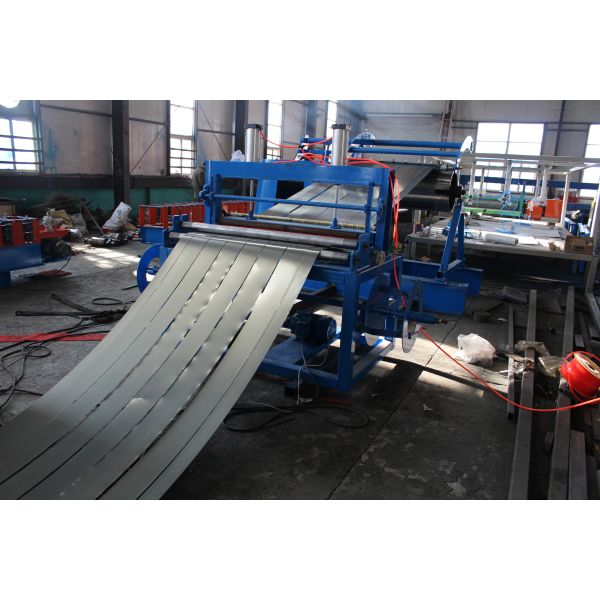

2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

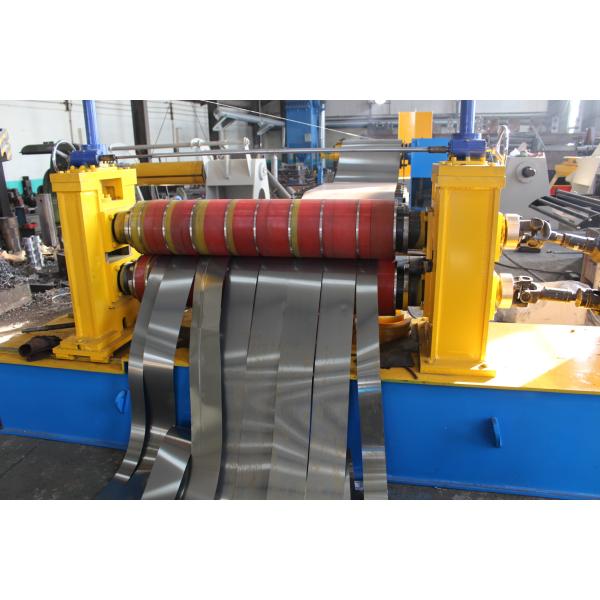

2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
